Containers with Docker

Containers

  • A way to package applications with all the necessary dependencies and configurations
  • Portable artifact, easily shared and moved around
  • Makes development and deployment more efficient
  • Repository
    • Containers are hosted here
    • Companies have private repositories
    • There are also public repositories. e.g. Docker Hub
  • Other container technologies
    • containerd
    • cri-o

Container vs Image

  • Made of layers of images
  • Mostly Linux Base Image because it's small
  • Application image is on top of the base
  • Mostly have intermediate images as well
  • Image
    • The actual package
    • Artifact that can be moved around
  • Container
    • Actually start the application
    • Container environment is created

Docker vs Virtual Machine

  • OS has 2 layers
    • OS Kernel
    • Applications layer
  • Docker and virtual machines are all virtualization tools
  • Docker virtualizes the applications layer
    • Uses kernel of the host
  • Virtual machine virtualizes
    • Has applications layer
    • Has its own kernel
  • Docker images are much smaller
  • Docker images are much faster
  • Compatibility
    • VM of any OS can run on any OS host
    • Can't do that on Docker
    • For example, a Linux-based docker image may not be compatible with the Windows kernel. (Windows below 10 and certain mac versions)
    • You can install a Docker Toolbox which abstracts away the kernel which makes it possible for the host to run different Docker images

Docker Architecture and Its components

  • Containers existed before Docker
  • Docker made containers popular
  • You install Docker with a Docker Engine
  • Docker Engine
    • Docker Server
      • Container runtime
        • Pulling images
        • Managing images and containers
      • Volumes
        • Persisting data
      • Network
        • Configuring network for container communication
      • Build images
    • API
      • Interacting with Docker Server
    • CLI
      • Client to execute Docker commands
  • Alternative for certain parts
    • Container runtime
      • containerd
      • cri-o
    • Build
      • buildah

Main Docker Commands

  • Container is a running environment for an image

Common Docker commands

# List images
docker images

# Pull
docker pull redis

# Run image (Pulls and starts image)
docker run redis

# Run in detached mode
docker run -d redis

# List of running containers
docker ps

# Stopped and running containers
docker ps -a

# Stop container
docker stop <id>

# Start container
docker start <id>
  • Container port vs Host port
    • Multiple containers can run on your host machine
    • Your laptop has only certain ports available
    • Need to create a binding between a port on your machine and the container
    • If you open 2 5000 ports on your host, you will have an error
    • Can have 2 containers running on the same port, but they must be bound to different ports on the host

Port binding

docker run -d -p 6000:6379 redis

Debug Commands

# Logs
docker logs <id>
docker logs <container_name>

# Name container
docker run -d -p 6001:6379 --name redis-old redis:4.0

# Exec
docker exec -it <id> /bin/bash
  • docker run: Images
  • docker start: containers
    • Restart stopped container

Docker Demo Project Overview

  • The app is a JS app
    • Developed in JS
    • Use MongoDB from Docker Hub
    • Commit changes to git
    • Jenkins (CI)
      • Build JS App and create Docker Image
      • Pushes image to private Docker repository
    • Dev server pulls both JS image and MongoDB image, and they're configured to communicate with each other

Developing with Docker

  • Mongo Express is used to visualise the mongodb database
docker pull mongo
docker pull mongo-express

Docker network

  • Docker creates its isolated docker network
  • Containers in the same network can talk to each other using just the container name
docker network ls
docker network create mongo-network
  • Add a network option when running mongo containers

Mongodb

docker run -p 27017:27017 -d -e MONGO_INITDB_ROOT_USERNAME=admin -e MONGO_INITDB_ROOT_PASSWORD=password --name mongodb --net mongo-network mongo

Mongo Express

docker run -d \
-p 8081:8081 \
-e ME_CONFIG_MONGODB_ADMINUSERNAME=admin \
-e ME_CONFIG_MONGODB_ADMINPASSWORD=password \
-e ME_CONFIG_MONGODB_SERVER=mongodb \
--net mongo-network \
--name devops-mongo-express \
mongo-express

Check logs

docker logs <id> | tail

Docker Compose: Run multiple Docker containers

  • It can be used to run and manage multiple containers
  • Docker compose handles creating a common network for our containers

docker-compose-yaml

version: "3"
services:
  # my-app:
  # image: ${docker-registry}/my-app:1.0
  # ports:
  # - 3000:3000
  devops-mongodb:
    image: mongo
    ports:
      - '27017:27017'
    environment:
      - MONGO_INITDB_ROOT_USERNAME=admin
      - MONGO_INITDB_ROOT_PASSWORD=password
    volumes:
      - mongo-data:/data/db
  devops-mongo-express:
    image: mongo-express
    restart: always
    ports:
      - '8080:8081'
    environment:
      - ME_CONFIG_MONGODB_ADMINUSERNAME=admin
      - ME_CONFIG_MONGODB_ADMINPASSWORD=password
      - ME_CONFIG_MONGODB_SERVER=mongodb
    depends_on:
      - "devops-mongodb"
# volumes:
#   mongo-data:
#     driver: local

Start containers

docker-compose -f docker-compose.yaml up

Stop containers

docker-compose -f <file> down
  • Removes network and containers

Dockerfile: Build your own Docker image

  • Dockerfile is a blueprint for creating docker images
  • With RUN, you can execute Linux commands

Building the Docker image

docker build -t my-app:1.0 .

Delete image

docker rmi <id>

Delete container

docker rm <id>

Envs

env

Private Docker Repository

  • Create a private Docker repository on AWS
    • Create a repository per image. Specific to ECR (Elastic Container Registry)
    • Different tags of the same image are stored in the repository
    • You have to log in to the private repository

Log in to AWS

  • View in Push commands
aws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin 227984707254.dkr.ecr.us-east-1.amazonaws.com

Image naming in Docker registries

  • registryDomain/imageName:tag
  • With Docker Hub, we were able to use a shorthand because that's how it's configured. Eg.
    • docker pull mongo:4.2 -->
    • docker pull docker.io/library/mongo:4.2
  • In AWS ECR, there is no shorthand for our private repos
    • docker pull registryDomain:my-app:latest

Push commands

docker build -t devops-app .

docker tag devops-app:latest 227984707254.dkr.ecr.us-east-1.amazonaws.com/devops-app:latest

docker push 227984707254.dkr.ecr.us-east-1.amazonaws.com/devops-app:latest
  • Make changes to the App, rebuild and push a new version to AWS repo
    • Go through the same process
docker build -t devops-app .

docker tag devops-app:latest 227984707254.dkr.ecr.us-east-1.amazonaws.com/devops-app:latest

docker push 227984707254.dkr.ecr.us-east-1.amazonaws.com/devops-app:latest
  • On ECR, each repo can hold 1000 images
  • Jenkins will need credentials to push to repository

Deploy Docker application on server

  • Deploy image to server
  • We'll use docker-compose
  • You will need all containers that make up the application environment
  • The server needs to login to pull from the Private repository
  • The docker-compose file would be used on the server to deploy all the applications/services

docker-compose

version: "3"
services:
  devops-app:
    image: 227984707254.dkr.ecr.us-east-1.amazonaws.com/devops-app:1.4 ####
    ports:
      - '3000:3000'
  devops-mongodb:
    image: mongo
    ports:
      - '27017:27017'
    environment:
      - MONGO_INITDB_ROOT_USERNAME=admin
      - MONGO_INITDB_ROOT_PASSWORD=password
    # volumes:
    #   - mongo-data:/data/db
  devops-mongo-express:
    image: mongo-express
    restart: always
    ports:
      - '8080:8081'
    environment:
      - ME_CONFIG_MONGODB_ADMINUSERNAME=admin
      - ME_CONFIG_MONGODB_ADMINPASSWORD=password
      - ME_CONFIG_MONGODB_SERVER=devops-mongodb
    depends_on:
      - "devops-mongodb"
# volumes:
#   mongo-data:
#     driver: local

Docker Volumes: Persisting Data

  • Used for data persistence in Docker
  • Folder in physical host file system is mounted into the virtual file system of Docker
  • Data in the container gets automatically replicated on the host file system
  • 3 Volume types
    • Host volume
      • You decide where on the host file system the reference is made
      • docker run -v /home/mount/data:/var/lib/mysql/data
        • host dir:container dir
    • Anonymous Volume
      • Create a volume by referencing just the container directory
      • For each container, a folder is generated that gets mounted
      • docker run -v /var/lib/mysql/data
    • Named Volume
      • docker run -v name:/var/lib/mysql/data
      • You can reference the volume by name
      • Should be used in production

docker-compose

 volumes:
   mongo-data:
     driver: local

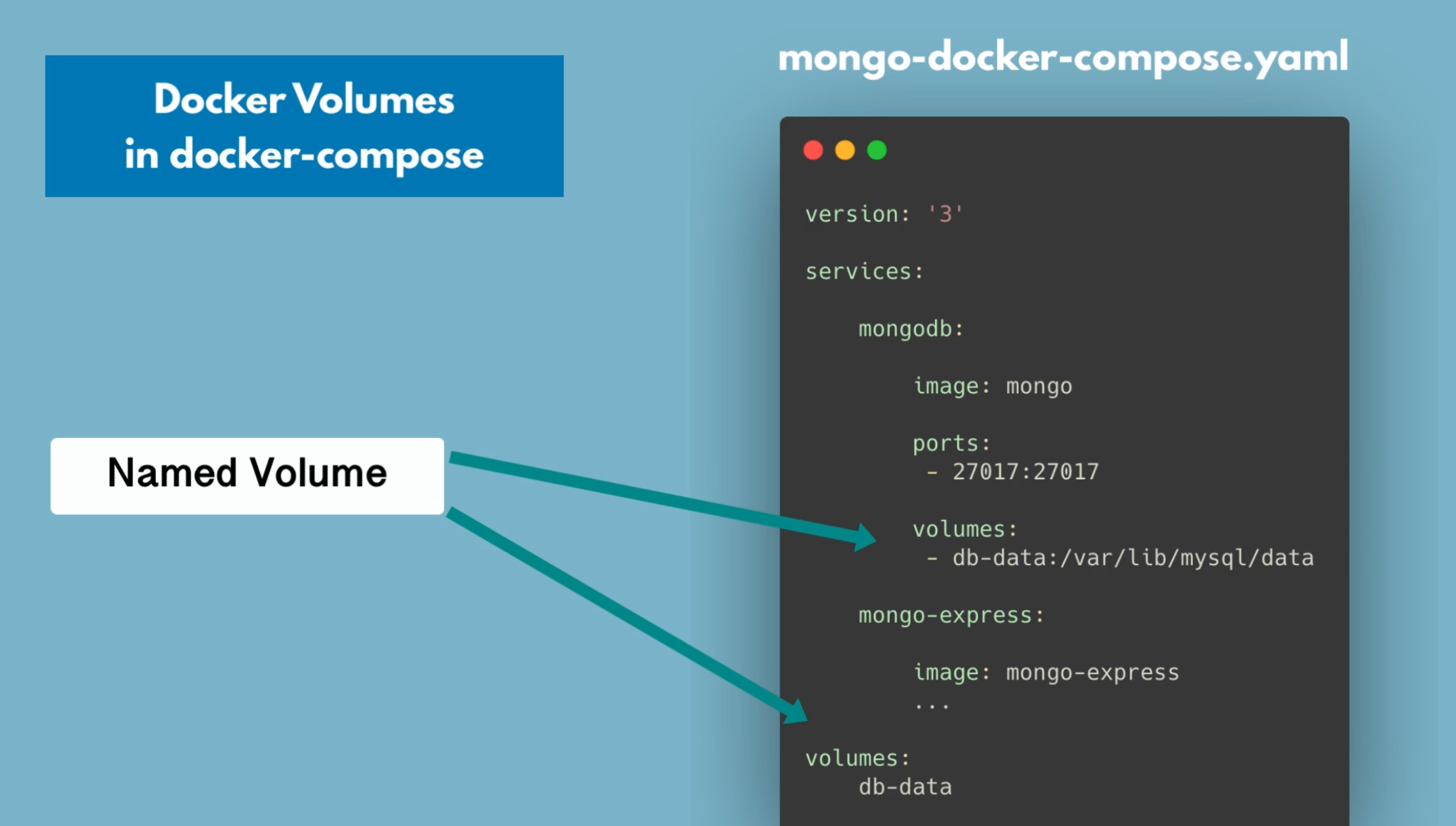

Docker volume

Docker Volumes Demo

  • Define named volume in Docker Compose file
  • Default storage paths
  • mongodb: /data/db
  • mysql: var/lib/mysql
  • postgres: var/lib/postgresql/data

docker-compose.yaml

version: "3"
services:
  devops-app:
    image: 227984707254.dkr.ecr.us-east-1.amazonaws.com/devops-app:1.4
    ports:
      - '3000:3000'
  devops-mongodb:
    image: mongo
    ports:
      - '27017:27017'
    environment:
      - MONGO_INITDB_ROOT_USERNAME=admin
      - MONGO_INITDB_ROOT_PASSWORD=password
    volumes:
      - mongo-data:/data/db # This is the default path for mongodb in the container
  devops-mongo-express:
    image: mongo-express
    restart: always
    ports:
      - '8080:8081'
    environment:
      - ME_CONFIG_MONGODB_ADMINUSERNAME=admin
      - ME_CONFIG_MONGODB_ADMINPASSWORD=password
      - ME_CONFIG_MONGODB_SERVER=devops-mongodb
    depends_on:
      - "devops-mongodb"
volumes:
  mongo-data: # name of volume reference
    driver: local

Where volumes are located

  • Windows: ProgramData\docker\volumes
  • Linux: /var/lib/docker/volumes
  • Mac: /var/lib/docker/volumes
    • Creates a Linux vm and stores all the Docker data there

Enter terminal for Linux vm

  • Didn't work on M1
screen ~/Library/Containers/com.docker.docker/Data/com.docker.driver.amd64-linux/tty

End screen session

Ctrl + a + k
Type y

Create Docker-Hosted Repository On Nexus

  • Create docker-hosted repository
  • We can then get the url we'll use to push images to this repository
  • Create User Role for Docker Repo
    • Need to log in with a Nexus user who has access to the docker-hosted repository

Docker login to Nexus Docker repository

  • Go to docker-hosted on Nexus and edit HTTP
    • Docker CLI can't connect using the docker-hosted URL
    • The endpoint will be the IP address and a port
    • We need an individual port for the docker repo
    • We'll use port 8083 for HTTP
  • Need to open port on Droplet's firewall configuration
  • Need to configure Realm on Nexus
    • When we log in, we get an auth token for the client that will be stored on the local machine
    • Token will be stored in ~/.docker/config.json
    • Need to configure the issuing of the token in Realms
    • Add Docker Bearer Token and save
  • Docker by default only allows the client to communicate with HTTPS endpoints
    • Change this behaviour by editing the /etc/docker/daemon.json file on Linux
    • On Docker desktop, you can change it in preferences
{
  "builder": {
    "gc": {
      "defaultKeepStorage": "20GB",
      "enabled": true
    }
  },
  "experimental": false,
  "features": {
    "buildkit": true
  },
  "insecure-registries": ["46.101.137.161:8083"] // Nexus' IP and the port we opened for Docker
}

docker login 46.101.137.161:8083
  • If nexus is being run in container, map the hosted repo's port on the container to the server.

Push Image to Nexus Repo

Build and tag image

docker tag my-image:1.0 46.101.137.161:8083/my-image:1.0

Push

docker push 46.101.137.161:8083/my-image:1.0
  • The different layers of the image are also pushed and handled as assets
  • These layers or assets can be used by other docker images as well

Fetch Docker image from Nexus

curl -u admin:password -X GET 'http://46.101.137.161:8081/service/rest/v1/components?repository=docker-hosted'

Deploy Nexus as a Docker container

  • Steps to run Nexus on Droplet
    • Install Java
    • Download nexus package
    • Untar Nexus package
    • Create nexus user
    • Give user permissions
    • Run Nexus with Nexus user
  • You can install nexus as a Docker Container

Create droplet

apt update
snap install docker
  • When we start nexus, we need to persist data since its running in a container
    • Need to configure a volume for it
docker volume create --name nexus-data
docker run -d -p 8081:8081 --name nexus -v nexus-data:/nexus-data sonatype/nexus3

apt install net-tools
docker ps
  • When you enter the container, Nexus is already running with a nexus user and not root

Check current user

whoami

Locate volume

docker volume ls
docker inspect <volume-name>
